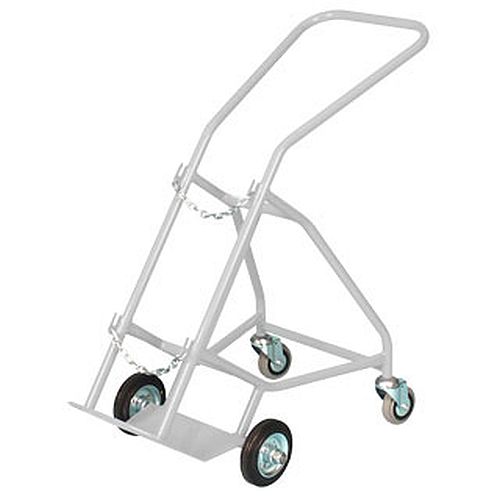

Bristol Maid Cylinder Transportation Trolley with Stabilisers for F and G Cylinders
Providing a secure method of transporting cylinders, the Bristol Maid Cylinder Transportation Trolley with Stabilisers for F and G Cylinders offers a supportive structure that reduces the strain of relocating medical cylinders. With practical features and a convenient design, the trolley safely holds cylinders for easier transportation.
Securing the Cylinders
The Cylinder Transportation Trolley features a sturdy base for positioning the cylinder onto the unit. The surface of the base provides a strong stand on which the bottom of the cylinder can rest, while the bars at the back of the trolley offer additional support to prevent the cylinder from slipping off.
The addition of two drop-over chains provides security around the body of the cylinder, helping to hold it in place to prevent the cylinder from detaching from the Transportation Trolley when in motion. This allows for a safer journey when relocating the cylinder by avoiding the risk of the cylinder becoming independent from the trolley.
Easier Manoeuvrability
Designed for a more convenient mode of relocating cylinders, the Cylinder Transportation Trolley is fitted with practical features to ease the manoeuvrability. The single handle provides a suitable grip for controlling the Transportation Trolley, enabling steadier steering, and in turn increasing the safety of the transportation.
The Transportation Trolley also features anti-static wheels and stabilising castors. While the two stabilising castors reduce the risk of the trolley tipping during transit, the anti-static nature of the wheels increases the safety of the trolley by helping to prevent unwanted sparks that could potentially present a danger when handling cylinders with flammable contents.
Cylinder Compatibility
The Cylinder Transportation Trolley is compatible with cylinders in the sizes F, HX, LF, VF, ZX, and G. It provides security for cylinders with a maximum diameter of 200mm and a maximum height of 1350mm.
Technical Specifications of the Cylinder Transportation Trolley
- Cylinder compatibility: F, HX, LF, VF, ZX, G
- Maximum cylinder diameter: 200mm
- Maximum cylinder height: 1350mm
- 160mm anti-static wheels
- 100mm swivel castors
- Paint colour: Grey
- Weight: 14kg
- Overall dimensions (WxDxH): 510 x 700 x 1160mm
