Echolink Pro Infrared Wireless TV Listener and Personal Listener Set
Life can be overwhelming and lonely for people who are elderly or hard of hearing - especially if they don't have the right hearing aid support. The Echolink Pro Infrared Wireless TV Listener and Personal Listener Set offers enhanced clarity and volume whether you're out and about or relaxing at home in front of the TV. With a lightweight infrared wireless design, this device guarantees safety, comfort and freedom for better quality of life.
What's Included?
- 1 x Echolink Pro Receiver
- 1 x Echolink Pro Transmitter
- 1 x Charger
- 2 x Power Adapter
- 1 x Neckloop with patch lead
- 1 x Phono plugs
- 1 x SCART
- 1 x Headset
- 1 x Toslink Cable
Key Information
- System: Infrared
- Mode: Stereo
- Transmit power: 16dBm (maximum)
- S/N ratio: 85dB
- Frequency response: 30 - 20,000Hz
- Power supply of receiver: Li-ion rechargeable battery
- Operating Distance: Up to 15 meters (must keep line of sight)
- Receiver battery: 3.7v dc 1000 mAh LI-ION
- Charging base power supply: USB 5V min. 1A
How Does the Wireless TV and Personal Listener Work?
This device features both TV and personal listener features, creating a lightweight and easy to use solution to a number of situations. This enables users to just take their Radiolink 2.4G receiver with them wherever they are, and use it at home when watching films and TV.
What Does This Set Do?
This TV and personal listener makes things louder. It makes your TV and conversations with other people, louder, for use in a range of different environments, and both indoors and outdoors. This makes it a helpful aid for daily living, allowing you to live life as normal.
How Loud is the EchoLink Pro?
This particular wireless listener has a maximum volume of 85 decibels for people with severe mobility loss.
See the EchoLink Pro in Action
Can I Use the Echo RadioLink with Headphones?

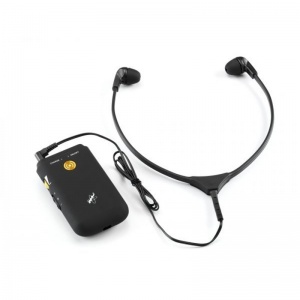

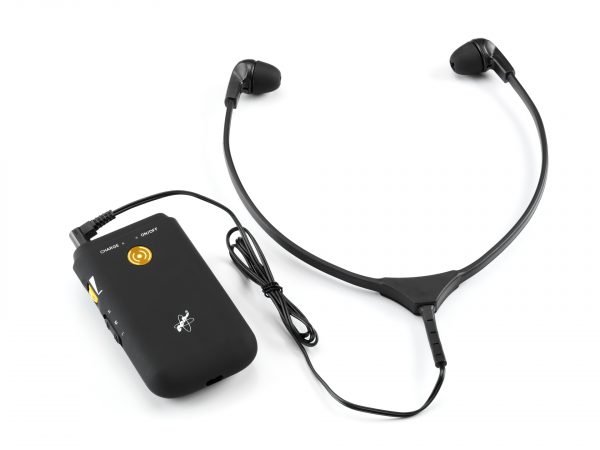

Yes. The Echo RadioLink is designed for use with headphones which are included in this purchase for easy, quick and immediate use. This set includes a lightweight under chin headset with standard 3.5mm jack plug. The receiver part picks up the 2.4g signal from the transmitter enabling you to enjoy perfect quality audio through a headset.
Can I Use this With Induction Loops?

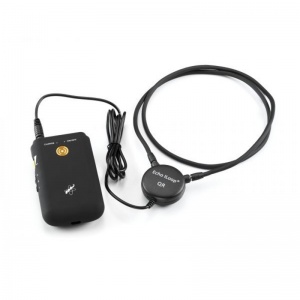

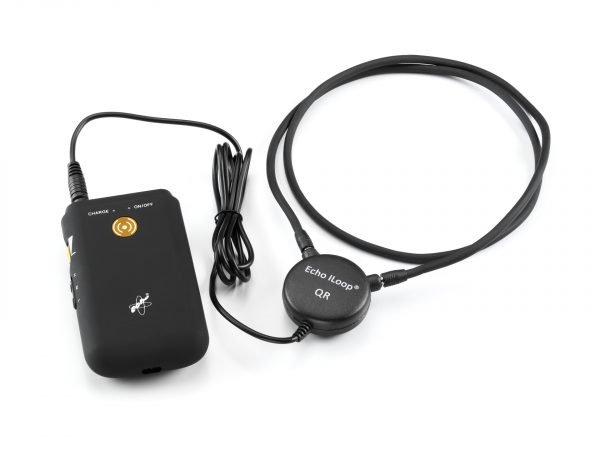

This set comes with an Echo iLoop neckloop. This quick release powerful neckloop is specifically designed for hearing aid wearers with a ‘T’ setting. It provides excellent quality sound with the use of a hearing aid switched to the ‘T’ setting. This allows for easy use with hearing aids to suit you and your every need.
User Instructions
This device comes with ultra-clear instructions, helping you to use this product as clearly and easily as possible. If you do have any issues though, feel free to check out the below instruction manual on how you can get the most out of your EchoLink:
Easy, Clear Troubleshooting
In the unlikely event that you have any issues with the EchoLink, this handy troubleshooting document offers clarification on any possible errors, explaining how to sort them. Check it out below:
Crisp and Clear

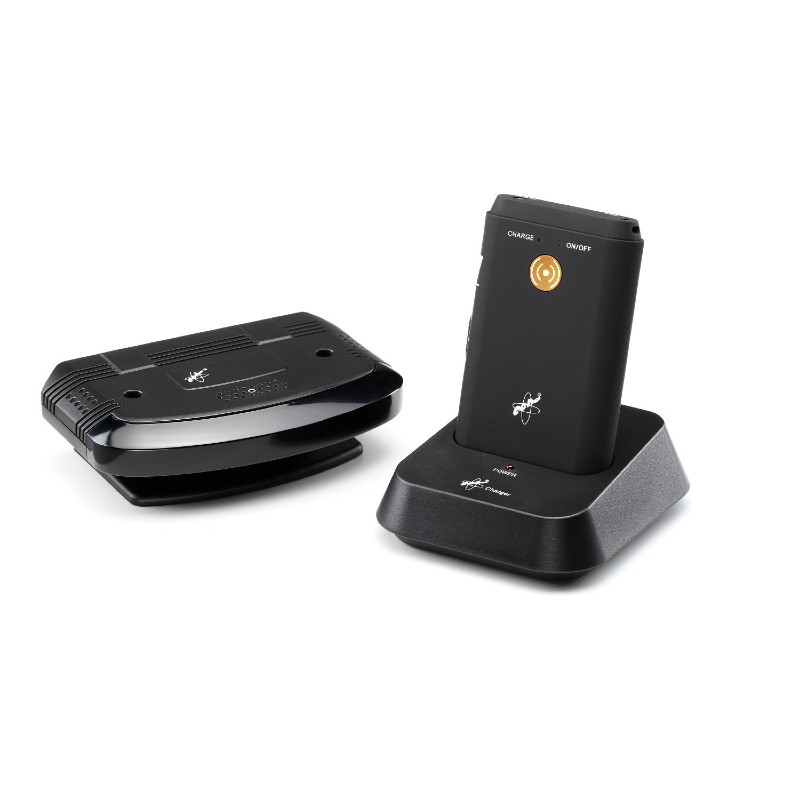

The EchoLink Pro is in two parts; a transmitter that plugs in to the TV, radio, music player etc and processes the sound sending out a infrared signal. The mains powered transmitter is powerful and lightweight and can be mounted onto the television with Velcro.

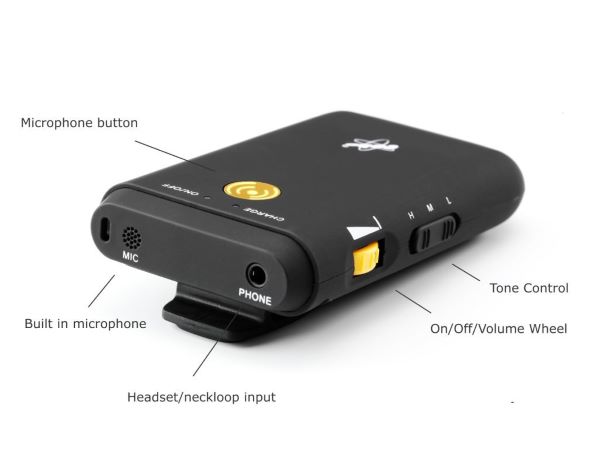

The receiver part picks up the infrared signal from the transmitter (must keep line of sight) enabling you to enjoy perfect quality audio through a headset or through your hearing aid on the T setting, using a high powered quick release neckloop. The independent handheld receiver has its own volume and tone control and can be easily adjusted without interfering with any one else listening to the TV.
Built-In Microphone for Switching from TV to Conversation
This design's built in microphone allows for switching from TV to Microphone, making it simple to hear people around you. You may also want to use receiver when going out and about, making it possible to hear again in often overwhelming environments including restaurants, shops, schools or post offices to amplify conversation.
Does This Design Need Batteries?

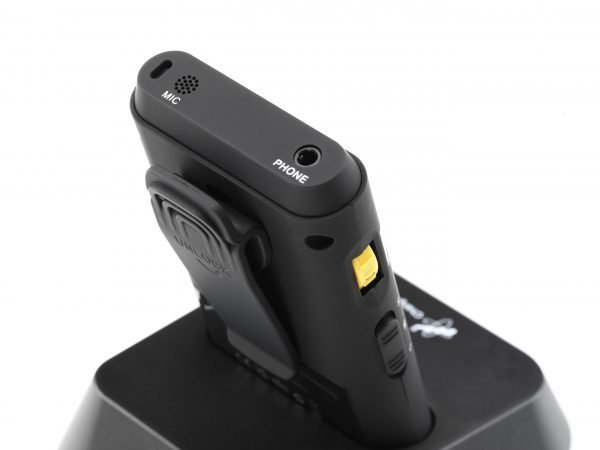

This particular listener is battery free, and uses a stylish charging base for quick and hands free power. This is compatible with Micro USB cables, but this design has a built in intelligent charging circuit to produce a faster charge for the receiver, which when fully charged provides up to thirty hours of listening time. In addition, the Echo Link TV Listener can charge while in use - meaning you'll be able to use it all day everyday regardless of charge levels.
What is the Range Like?
This model has a range of up to 15m, making it ideal for use while watching TV or while staying out and about. It is important to note that this device does not work with plasma TVs, and you must keep the line of sight between the transmitter and receiver.
Technical Information
- System: Infrared
- Carrier frequency: Single channel 2.3/2.8Mhz
- Mode: Stereo
- Transmit power: 16dBm (maximum)
- S/N ratio: 85dB
- Distortion: 0.5%
- Frequency response: 30 - 20,000Hz
- Power supply of transmitter: DC12V 0.2A Positive Tip
- Power supply of receiver: Li-ion rechargeable battery
- Operating Distance: Up to 15 meters (must keep line of sight)
- Receiver battery: 3.7v dc 1000 mAh LI-ION
- Charging base power supply: USB 5V min. 1A
Technical Data Sheet
To read the conformity statement for this product, please click on the link below:
